Diagnostic boundary: use this page when the station is receiving solar power but the wattage is materially lower than you expected. If the display remains at zero or solar charging is not detected, start with the zero-input decision tree.
Panel nameplate power is an STC rating, not a promise of live station-input watts. There is no defensible universal percentage that every portable setup should achieve. The useful question is which measured or documented limit best explains the present result.
The T9 Reduced-Input Diagnostic Order
| Stage | Compare | What the result suggests |
|---|---|---|
| 1. Define the baseline | Array nameplate watts, configuration and station limit | The lowest documented ceiling may explain the result |
| 2. Control the solar conditions | Clear-sun versus current orientation, shade and cloud | Environmental availability changed |
| 3. Check voltage regime | Array Vmp/Voc versus station range | Poor operating match or unsafe configuration |
| 4. Check current regime | Array Imp/Isc versus documented input rules | Current ceiling or unsupported array |
| 5. Quantify cable loss | Short reference path versus installed path | Resistance is consuming voltage and power |
| 6. Isolate components | One change at a time | Panel, shade, cable, adapter or station path |
| 7. Apply model behaviour | Manual, support and fault/app data | Controller, battery or firmware-specific cause |
Build a Quantitative Power Budget
Record the station display watts, array rated power, Ns × Np configuration, panel Vmp/Imp, station voltage/current/power limits, solar conditions, cable length/gauge, connector path and battery state. Keep three quantities separate:
- Available panel-side power: changes with effective irradiance, cell temperature, orientation, shade and mismatch.
- Documented input ceiling: the station’s voltage, current and accepted-power rules.
- Delivered input: what remains after configuration and resistive/conversion losses, subject to controller behaviour.
A diagnostic upper bound—not an exact real-world prediction and not a universal PV performance equation—can be written as Ppossible ≤ min(Parray available, Pstation limit, Voperating × Iaccepted). It is a bound, not a prediction of exact display watts.

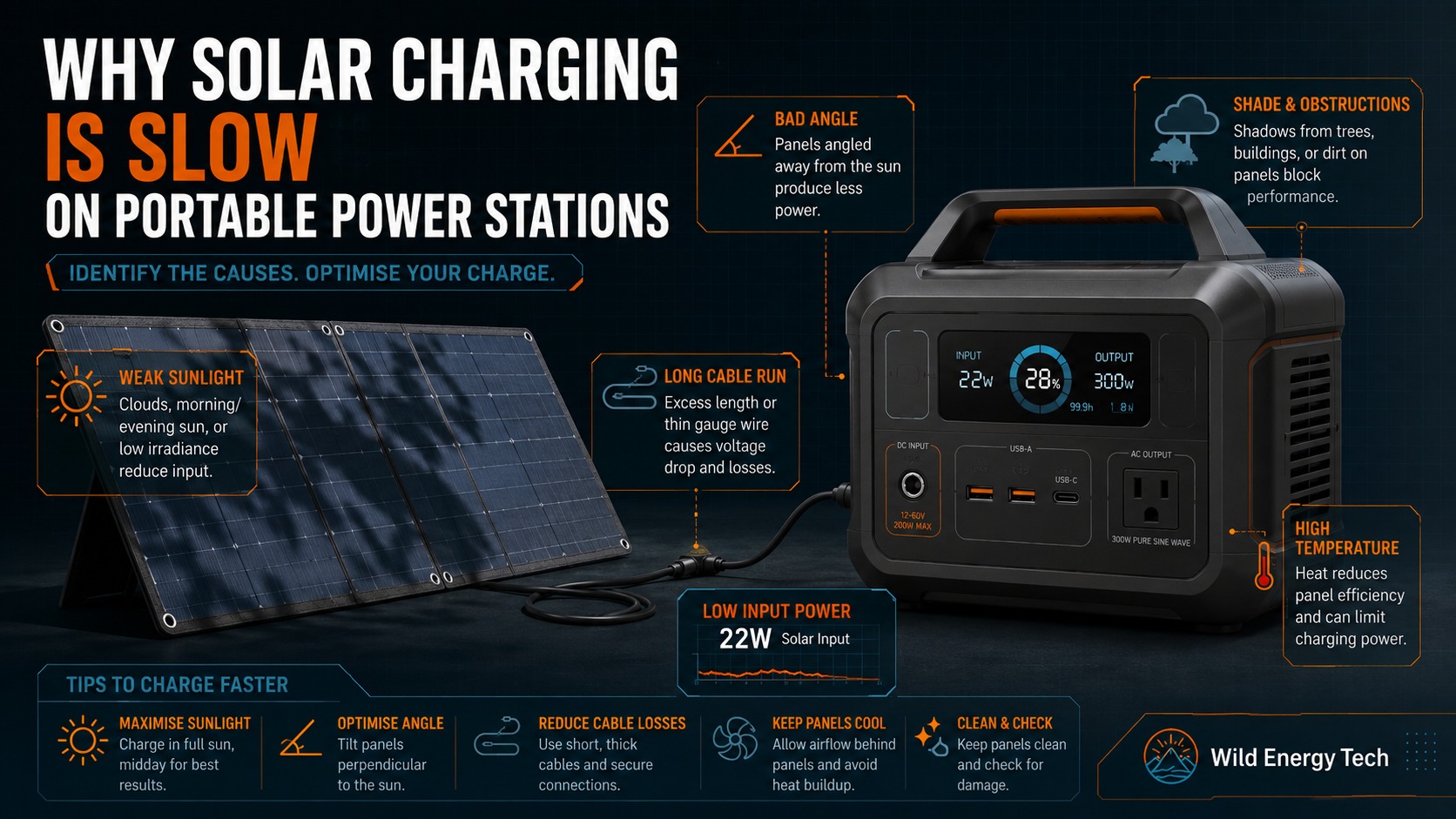

Loss Factor 1 — Irradiance and Nameplate Rating
NREL’s photovoltaic modelling documentation treats effective irradiance and cell temperature as inputs to DC module power. That is why rated watts cannot be converted into a universal real-world percentage.
For an explicitly simplified irradiance-only comparison, before temperature and other losses:
Pirradiance-only = Prated × (G / 1000 W/m²)
Example: a 220 W panel at an assumed 700 W/m² plane-of-array irradiance gives 220 × 0.70 = 154 W before temperature, mismatch, wiring, conversion or controller limits. This is a scenario calculation, not a forecast and not a measured T9 result.
Loss Factor 2 — Panel Temperature
Use the panel’s own maximum-power temperature coefficient where available. For a simplified calculation:
Ptemp ≈ Preference × [1 + γP × (Tcell − 25°C)]
The EcoFlow NextGen 220 W panel manual lists a maximum-power coefficient of −0.30%/°C ±0.02. At an assumed 55°C cell temperature and 1000 W/m² reference irradiance, the central coefficient gives 220 × [1 − 0.003 × 30] = 200.2 W before other losses. Cell temperature is not the same as air temperature, and coefficient tolerance matters.
Loss Factor 3 — Station Voltage, Current and Power Ceilings
Calculate the array with the series/parallel configuration method, then apply the full T9 Compatibility Method against the exact station manual. The EcoFlow DELTA 2 manual documents 11–60 V, 15 A and 500 W solar input. Two NextGen 220 W panels in parallel calculate to 18.4 Vmp and 23.8 A Imp. Power is below 500 W, but calculated operating current exceeds 15 A. The cited evidence does not establish that this array is approved merely because the controller may limit draw. Next action: check EcoFlow’s exact permitted configuration rather than treating the lower display as an efficiency fault.
Loss Factor 4 — Cable Resistance
Use the existing Hardware Vault for the full cable/adapter methodology. Using the voltage-current-resistance relationship, for a known total loop resistance R at current I:
- Vdrop = I × R
- Ploss = I² × R
- Voltage drop % = (Vdrop / Vsystem) × 100
Worked scenario: a complete positive-and-negative cable loop measured or calculated at 0.20 Ω carrying 10 A loses 2.0 V and 20 W. On a 20 V operating circuit, that is a 10% voltage drop. The same resistance at 5 A loses 1.0 V and 5 W, showing why current and the full loop matter. Do not estimate resistance from length alone without conductor size, material, temperature and connection resistance.
Loss Factor 5 — Shade and Mismatch
Partial shade is not adequately represented by subtracting the shaded area percentage. PVEducation documents mismatch effects in arrays: cells or modules at different operating conditions can constrain array behaviour, with the outcome depending on interconnection and bypass paths. Next action: remove shade, retest under comparable conditions, then inspect the configuration rather than applying a universal shade-loss percentage.
Worked Diagnostic Cases
Case A — Station power ceiling
An array can have more nameplate power than a station accepts, but excess power or clipping may be treated as acceptable only when the exact manufacturer documentation permits the proposed configuration or explicitly documents the relevant controller-limiting behaviour. A wattage ceiling does not override voltage limits, current/Isc rules, cable ratings or connector limits, and clipping does not itself prove manufacturer permission.
Case B — Current-limited or unsupported configuration
Two EcoFlow 220 W panels in parallel calculate to 23.8 A Imp against DELTA 2’s documented 15 A solar-input figure. Observation: power may be lower than 440 W. Next action: obtain model-specific configuration permission; do not infer safe clipping.
Case C — Cable loss
At 10 A through a 0.20 Ω loop, Vdrop = 2 V and Ploss = 20 W. Next action: compare with a short, correctly rated manufacturer-supported cable path, inspecting connectors for added resistance.
Case D — Partial shade
If input rises materially after shade is removed while configuration and equipment remain unchanged, shade/mismatch becomes the best-supported next factor. The exact loss still depends on module construction and wiring.
Case E — Nameplate compared with non-STC conditions
The simplified 220 W, 700 W/m² scenario produces 154 W before temperature and system losses. Next action: compare conditions rather than assuming a 66 W equipment fault.
Case F — The display is actually zero
Zero watts with no charging indication is not a reduced-input case. Move to the Not Detecting decision tree and check voltage, solar panel polarity, connector continuity and controller start conditions.
Model-Specific Branch: EcoFlow Stuck at 8 A
If an EcoFlow system repeatedly shows an 8 A behaviour and the exact model/cable combination is relevant, use the dedicated EcoFlow 8 A diagnostic. Do not generalise its XT60/XT60i explanation to other brands or every EcoFlow model.
Evidence and Limits
- EcoFlow DELTA 2 User Manual — model input limits.
- EcoFlow NextGen 220 W Panel Manual — rated values and temperature coefficients.
- NREL SAM Photovoltaic Model Technical Reference Update — effective irradiance, cell temperature and DC power modelling.
- PVEducation mismatch reference — array mismatch and shading behaviour.
- Fluke Ohm’s law reference — voltage, current and resistance relationship.
Stop: do not alter wiring to chase higher watts if cold Voc, polarity, current rules, connector ratings or manufacturer permission are uncertain.
