Publication history: Originally published 17 May 2026. Substantially reviewed and updated 23 August 2026.
Module role: determine whether array nameplate power above a station’s accepted solar wattage is explicitly allowed, merely clipped, unsupported, or unsafe. Use the complete T9 Compatibility Method for the full connection decision.
This is documentation-based analysis, not a physical product test. “Over-paneling” is not a universal permission.

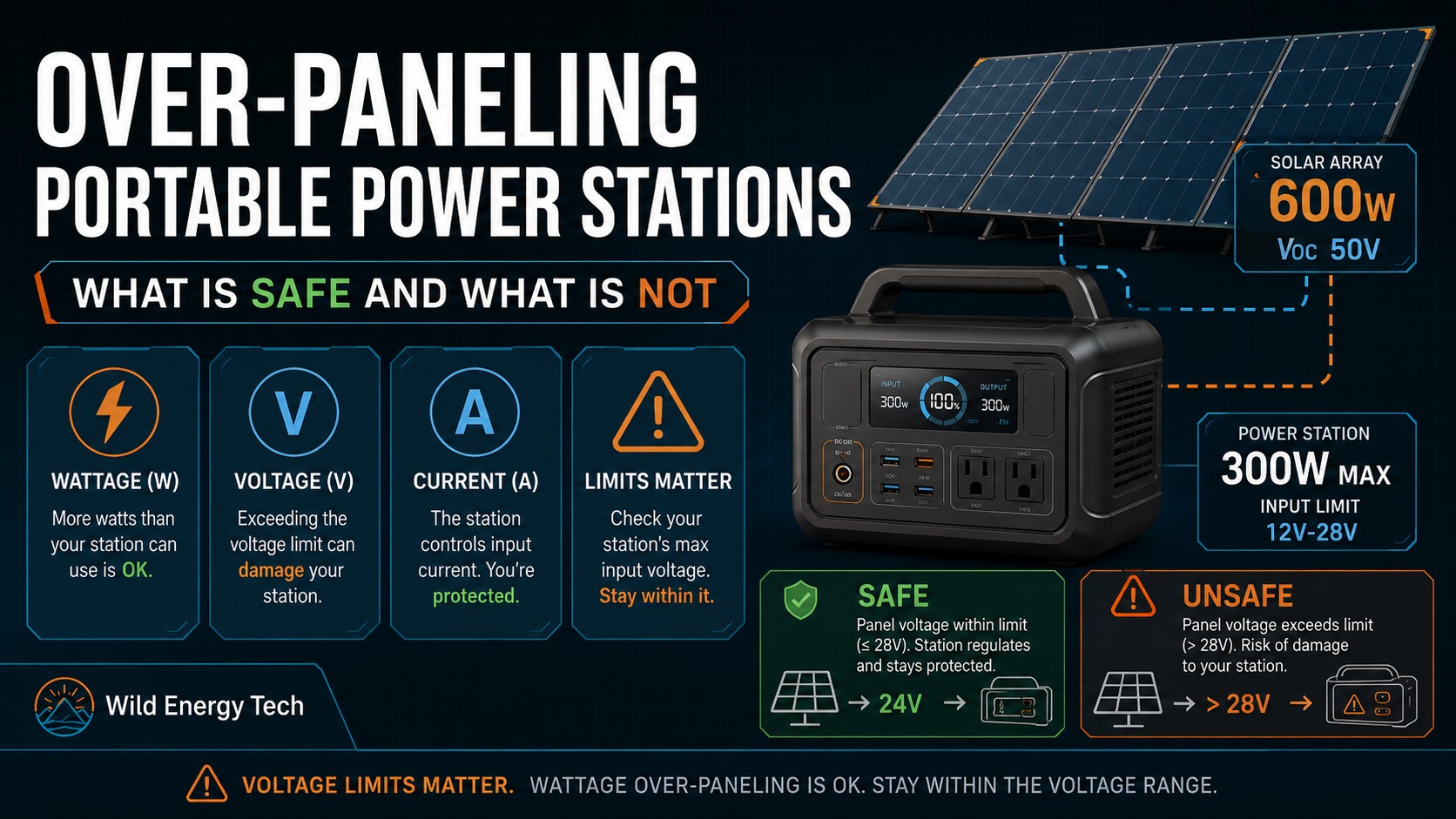

Four Limits Must Be Kept Separate
| Limit | What it controls | Can clipping make an excess acceptable? |
|---|---|---|
| Absolute maximum input voltage | Highest allowable PV open-circuit voltage | No. Over-voltage remains a hard stop. |
| Maximum input current / Isc rule | Controller, input and protection exposure | Only if manufacturer documentation explicitly permits the proposed array behaviour. |
| Maximum accepted solar power | Power the station can use | Sometimes; excess nameplate power may be unused where documented. |
| Connector/cable/protection ratings | Current and thermal capability of the path | No automatic exemption. Every component must remain within its rating. |
The T9 Over-Paneling Decision
- Confirm exact station, region, port and manual revision.
- Calculate array STC Voc, Vmp, Imp, Isc and rated power.
- Calculate cold-weather array Voc using the panel’s own coefficient.
- Reject any configuration that can exceed the absolute voltage maximum.
- Check current and short-circuit-current rules for the station and every cable/connector.
- Find explicit manufacturer evidence about excess array power or controller limiting.
- If permission is absent or ambiguous, classify it as UNSUPPORTED / UNKNOWN — safety has not been established. Do not recommend or connect the configuration until exact manufacturer documentation or other controlling evidence confirms it.
Documented Example: BLUETTI AC200P
The BLUETTI AC200P manual states that the unit supports up to 700 W solar input. It gives an 800 W panel-array example and says the extra 100 W will not be used for charging. The same manual separately warns not to use panels with open-circuit voltage above 150 V because that may damage the unit.
This is strong evidence for a narrow conclusion: that manual documents unused excess nameplate power for that model while preserving a separate hard solar panel Voc ceiling. It does not prove that every BLUETTI model, every current level or every portable power station permits the same design.
Worked Risk Cases
Case A — Potentially acceptable because the manufacturer documents it
Station: BLUETTI AC200P. Published rule: 700 W solar input; the manual illustrates 800 W of panel capacity with 100 W unused, and prohibits Voc above 150 V.
Result: compatible with documented power limitation only if the actual array’s cold Voc, current, connector, polarity and other requirements also pass. The 800 W example does not remove those gates.
Case B — Wattage is acceptable but voltage is prohibited
Station: BLUETTI AC60. Its manual requires solar-panel Voc of 12–28 V, 8 A maximum and 200 W maximum, and warns that Voc above 28 V may damage the device.
An array rated below 200 W but with 30 V Voc fails the hard voltage rule. Result: DO NOT CONNECT. Low wattage does not compensate for excess Voc.
Case C — DELTA 2 parallel array: unsupported from the cited evidence
Two EcoFlow NextGen 220 W panels in parallel calculate to approximately 440 W, 18.4 Vmp, 23.8 A Imp and 24.8 A Isc. The EcoFlow DELTA 2 manual lists 11–60 V, 15 A and 500 W.
The array is below 500 W and voltage fits, but calculated current exceeds 15 A. The cited manual section does not grant blanket approval for that higher-current array. Result: NOT ENOUGH EVIDENCE — CHECK ECOFLOW. Do not claim it is safe merely because the station may limit draw.
Case D — Series voltage violation
Three EcoFlow NextGen 220 W panels in series produce 64.5 V Voc at STC, already above the DELTA 2’s 60 V maximum. Cold conditions raise Voc further. Result: DO NOT CONNECT, regardless of the station’s 500 W accepted-power figure.
Case E — Manufacturer rule cannot be found
If a station manual provides voltage/current/power limits but does not state whether a larger nameplate array is allowed, the correct result is NOT ENOUGH EVIDENCE — CHECK MANUFACTURER. General MPPT behaviour and another brand’s policy do not create approval.
Why Controller Clipping Is Not a Safety Argument
Victron documents specific models where the charger limits input power when more PV power is connected. That proves power limiting exists in specifically documented controllers. The solar charging current clipping and slow-charging guide explains how input limits affect observed charging performance. It does not prove that input voltage, short-circuit current, reverse-polarity exposure, cables or connectors can be oversized without limit. Use the target equipment’s own restrictions.
Over-Paneling Evidence Record
| Question | Required evidence | Result |
|---|---|---|
| Cold array Voc below hard maximum? | Panel datasheet + station manual + temperature calculation | Pass / Fail / Unknown |
| Vmp in operating range? | Panel datasheet + controller range | Pass / Fail / Unknown |
| Imp and Isc permitted? | Station/port rule and component ratings | Pass / Fail / Unknown |
| Excess array wattage explicitly allowed? | Manufacturer manual/support for exact model | Yes / No / Not found |
| What will be limited? | Manufacturer description | Power / current / model-specific |
| Connector and polarity confirmed? | Manual, datasheet or verified measurement | Pass / Fail / Unknown |
Stop Conditions
- Cold array Voc can exceed the absolute maximum.
- Manufacturer current or Isc limits are exceeded.
- Cable, splitter, connector or fuse ratings are unknown.
- The manufacturer prohibits excess panel power.
- The exact model’s permission cannot be established.
- Polarity or pinout is uncertain.
Evidence
- BLUETTI AC200P User Manual — documented 700 W input, 800 W array example and 150 V prohibition.
- BLUETTI AC60 User Manual — 12–28 V Voc, 8 A, 200 W and over-voltage warning.
- EcoFlow DELTA 2 User Manual — 11–60 V, 15 A, 500 W.
- EcoFlow NextGen 220 W Panel Manual — panel values used in T9 calculations.
- Victron controller specifications — model-specific input-power limiting and PV current/voltage limits.
